Certificate Lifecycle Management for Citrix NetScaler

Certificate lifecycle management for Citrix NetScaler is the automated discovery, issuance, renewal and installation of the TLS certificates your virtual servers present — without an engineer uploading a file and running update ssl certKey. PKI Insights runs this entirely inside your own network. It enumerates the certificate-key pairs configured on each NetScaler, shows the virtual servers bound to each one, renews from the certificate authority you already use, and updates the certificate in place. Private keys are generated on the agent host and never leave it.

What happens on a NetScaler when a certificate expires

Nothing. That is the problem.

A virtual server presents whatever the certificate-key pair it is bound to happens to contain. NetScaler does not watch the expiry date, request a replacement, or update the file. Until an engineer uploads a new certificate to /nsconfig/ssl, updates the certkey and saves the configuration, every virtual server bound to that pair serves an expired certificate to every client that connects.

The procedure is not difficult. What changes is how often it has to run. Public TLS certificate lifetimes are contracting on a schedule set by the CA/Browser Forum, and each reduction multiplies renewal volume against an estate that keeps growing. Internal certificates issued by a private CA — Citrix Gateway, internal load-balancing virtual servers, management access, usually the majority of what a NetScaler estate actually serves — sit outside that schedule entirely, which tends to mean they are tracked even less carefully than the public ones.

Read the full analysis: The 100-day deadline lands March 2027

Either way it is the same operation, repeated across every certkey in the estate, indefinitely. That is what automation is for — provided you know what is in the estate to begin with.

Start with what is actually there

Most NetScaler estates cannot produce an accurate list of the certificates they are serving. Certkeys get created for a migration and never removed. A wildcard is uploaded once and bound to six virtual servers. A Gateway vServer nobody owns quietly terminates TLS for something that turned out to matter. Files accumulate in /nsconfig/ssl with no record of which are still referenced.

Automating renewal across an inventory you have not verified renews the certificates you happened to remember.

PKI Insights begins with discovery, not renewal. Network discovery scans a CIDR block or a list of endpoints across a port range, connects to everything presenting a certificate, and records the endpoint, port, certificate details, key information, purpose and days to expiry. Anything found that is not already under monitoring is flagged and exported as CSV, ready to import straight into monitoring or renewal.

Run it against the segments your NetScalers front before you configure a single renewal. The gap between what discovery returns and what your inventory says is the real measure of exposure.

How PKI Insights reaches the NetScaler

A PKI Insights Agent is installed on a host inside your network with a route to the NetScaler management address. The agent does the work: it generates the key pair, builds the CSR, obtains the certificate, and installs it on the appliance. There is no software to install on the NetScaler itself, and nothing to schedule on it.

A renewal scan target for NetScaler is configured with the appliance base URL and the credentials the agent will use to reach it over NITRO REST, the NetScaler REST API, on HTTPS. Fetch Certificates then queries the appliance and returns the certificate-key pairs it is running — each with the certificate and key file it points at, the key algorithm and size, and days to expiry. You select the ones that come under automated renewal and leave the rest alone.

That step is worth understanding. Competing products require an operator to map each virtual server to its certificate by hand, as a prerequisite, before automation can begin — a task that is both laborious and the single most common source of a certificate landing on the wrong object. PKI Insights reads the certkey list off the appliance. The mapping is not something you maintain in a spreadsheet and transcribe into a console; it is fetched from the device that holds the truth.

The account does not need to be a full administrator. The credentials the agent uses require only enough privilege to upload certificate files and update the certificate-key pairs under management. Scope a dedicated automation account to those permissions rather than reusing nsroot or an existing administrative login, and the renewal path has no ability to change anything else on the appliance.

Appliance connectivity can be held in two places. Configure it as a connector in PKI Insights and reference it from any scan target that needs it. Or hold it on the agent and use Fetch Remote Device Connectors From Agent to pull the connector definitions in, so the appliance credentials never reside in the management platform at all. The second option exists for security teams who will not permit NetScaler credentials to be stored anywhere outside the network segment the appliance sits in.

One certificate, many virtual servers

This is where NetScaler differs from every other platform in the estate, and it is worth being explicit about because it changes what a renewal means.

On most platforms the certificate is bound to the thing that serves it. Replace the certificate, and you have changed one service.

NetScaler is a level of indirection deeper. A virtual server binds to a certificate-key pair — an alias. The alias points at a certificate file. PKI Insights renews by updating the certificate underneath the alias. The alias does not change. No binding changes. No virtual server is touched.

Two consequences follow.

The renewal is cleaner than the alternative. There is no unbind, no rebind, no new object to attach, no reconfiguration of anything a client talks to. The virtual servers carry on serving; what they serve is now the new certificate. An approach that created a new certkey and rebound each virtual server would have to touch every one of them, in sequence, with a window of inconsistency in between.

The scope is wider than one service. If five virtual servers are bound to the same certkey, one renewal changes what all five present. That is efficient — five services renewed by one operation, and the arithmetic below counts certkeys rather than virtual servers because of it. But it is also a bigger change than it looks on the scan target screen, and it is the thing a NetScaler administrator will want to know before switching automation on.

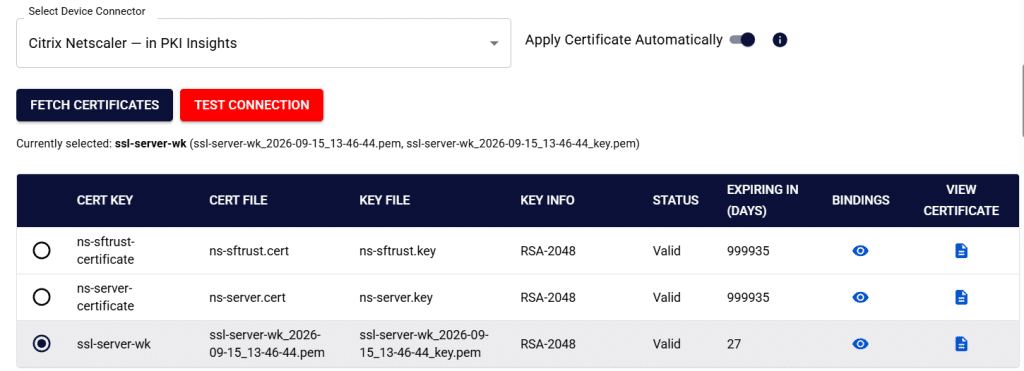

So PKI Insights shows it. Every certificate-key pair returned by Fetch Certificates carries a Bindings view, and opening it lists the virtual servers attached to that pair — precisely what will be affected when the certificate is renewed. You are not inferring the blast radius from a configuration dump or from a memory of what was built two years ago. It is on the screen next to the renewal you are about to schedule.

This is also the strongest argument for the staged mode described below. On a platform where one operation changes one service, deferring the apply to a change window is good practice. On NetScaler, where one operation can change five, it is how you avoid touching five production services outside an approved window.

Where the keys are, at every step

This is the section a security reviewer reads twice, so it is worth being precise rather than sweeping.

The private key is generated on the agent host and never leaves it. Key, CSR and the assembled PEM or PKCS#12 are written to a fixed path under the agent’s own installation directory, one folder per scan target and one per renewal event, so nothing collides and every event is traceable:

<agent installation folder>/clm/<scan target name>/secrets-<cert common name>-<date-time>

Keys are pruned on a retention schedule (clm_keys_retention_days, default 180 days), so material does not accumulate on the host indefinitely.

What crosses the network is the CSR going out and the issued certificate coming back. Both are public objects. The key itself is never transmitted to PKI Insights, never transmitted to a vendor cloud, and never leaves the segment the agent sits in.

Which component talks to your CA depends on the CA:

For ADCS, PKI Insights communicates with the CA directly from a domain-joined server; no agent is involved in issuance. For every other authority the agent holds the credentials and makes the call.

Deployment prerequisite for ADCS: the PKI Insights server must be domain-joined, have a network path to the issuing CA, and hold enrolment rights on the template you intend to use. In a segmented estate that makes placement a design decision — the platform inside the domain, agents out in the DMZ and appliance segments.

Bring the certificate authority you already have

Most CLM platforms are built around a preferred authority, and the further you move from it the more the automation degrades. Sectigo’s product exists alongside Sectigo’s certificates. DigiCert’s exists alongside DigiCert’s. Several competing NetScaler integrations steer new deployments toward a free public CA with delegated DNS validation, because that is the path their automation handles best.

A real NetScaler estate does not look like that. Internet-facing virtual servers need publicly trusted certificates from the CA you hold a contract with. Citrix Gateway in a government or financial environment, internal load-balancing virtual servers, management access — these are issued from your own PKI, usually Microsoft ADCS, where public trust is irrelevant and a public CA cannot issue at all.

PKI Insights treats the CA as an interchangeable component. Public certificates from DigiCert or Sectigo on the edge, internal certificates from ADCS, EJBCA or HashiCorp Vault behind it, both in one inventory with one renewal engine and one set of expiry dates.

When the public certificates renew on one system and the internal ones renew on another, the gap between the two inventories is where outages live.

Automating NetScaler renewal from Microsoft ADCS

This deserves its own heading because it is the case the rest of the market handles worst.

ADCS has no native ACME responder. Every CLM platform built on ACME therefore has one of three answers when your NetScaler certificates come from an internal Microsoft CA: stand up an ACME front-end for ADCS, fall back to NDES and SCEP, or move the certificates to a public CA instead. The first is a project, the second carries its own security baggage, and the third is not available for internal names at all.

PKI Insights issues from ADCS using certutil against the CA directly, with the certificate template named in the scan target. No ACME layer, no protocol gateway, no change to the CA.

For most enterprises the majority of certificates on a NetScaler estate — Citrix Gateway, internal virtual servers, management access, everything that never faces the internet — are ADCS-issued. That is the volume. It should not be the part your automation cannot reach.

Configuring a renewal scan target

The scan target defines what gets renewed, when, from which CA and in what form.

Scheduling. Set Auto-Renew (Days before Expiry) to the lead time you want, and the daily time the check runs. PKI Insights raises CERT_ABOUT_TO_RENEW and notifies the certificate owner one day before the renewal executes, so the change is never a surprise.

Identity. Provide the SAN values explicitly, in DNS:, IP: or Email: form, and the subject DN. Subject elements supported include CN, O, OU, C, L, ST, S, P, SERIALNUMBER, UID, E and business category.

Cryptography. Key type RSA or ECDSA, with curve and size, and the hash algorithm used for the CSR.

Chain packaging. Choose whether the delivered certificate is the leaf alone, the full chain excluding the root, or the full chain including the root — a decision that matters on a Citrix NetScaler, where an incomplete chain produces intermittent client failures rather than an obvious outage.

Certificate authority. Select the CA connector that will issue. Where the CA requires it — ADCS in particular — name the template.

Zero-touch, or staged for a change window

Apply Certificate Automatically is a toggle, and on NetScaler it matters more than on most platforms.

Left enabled, the renewal runs end to end without intervention: issued, delivered, installed, and every virtual server bound to that certkey serves the new certificate from that moment.

Turned off, PKI Insights renews the certificate and holds it. The new certificate appears in the Certificates section and an administrator applies it when they choose — inside an approved change window, after a CAB, or alongside the rest of a scheduled maintenance slot.

Most of this market sells zero-touch as the only mode. For a regulated environment where a change affecting several production virtual servers requires an approved window regardless of how safe the change is, that is not a feature, it is an obstacle. Being able to separate issuance from application means the renewal is prepared automatically and applied under whatever governance your organisation actually operates.

Verification, alerting and audit

An automated renewal that reports success has told you the script finished. It has not told you what the virtual server is serving.

Point Network Monitor at the published virtual server and PKI Insights connects to the live endpoint and grades what it finds: expiry, weak key or signing algorithm, certificate lifetime against CA/Browser Forum guidance, RFC 5280 and CA/B linting, TLS protocol and cipher suite conformance from SSLv2 through TLS 1.3, and post-quantum readiness of the handshake. Endpoints are graded A+ through F, with X where no certificate was found at all. Each endpoint carries a certificate history showing every certificate that has been served at that address over time.

The renewal path raises its own alerts — CERT_ABOUT_TO_RENEW, CERT_ISSUED, CERT_RENEWED, CERT_RENEWAL_FAILED — with the failing CSR available against the alert for diagnosis. Daily renewal summaries and per-owner certificate reports go out by email, and operator logs record who changed which scan target, when, and what the previous value was.

Between the renewal record and the endpoint grade you have both halves of the evidence an auditor asks for: that the certificate was renewed, and that the renewed certificate is the one in production.

When there is no native connector

Citrix NetScaler is a supported appliance type with a built-in integration. Not everything in an estate is.

For systems PKI Insights does not natively connect to — a bespoke application storing its certificate somewhere proprietary, an appliance reachable only through a jump host, a platform your organisation runs and nobody else does — the CLM module is extensible with scripts, in PowerShell or bash, configured inside the same scan target as everything else.

The platform still performs every security-sensitive step. Discovery, key generation, CSR creation, CA communication, format conversion and renewal scheduling all remain with PKI Insights and the agent. Only the final handover is delegated.

Scripts receive their input as base64-encoded JSON in the PKI_INSIGHTS_SCRIPT_DATA environment variable — never on the command line, which keeps operator-supplied arguments out of process listings and shell history. Up to fifteen arguments are stored encrypted, so credentials and tokens are safe to pass. Delivered files are named explicitly (certFile, keyFile, chainFile, pfxFile) rather than left to be identified by array position or file extension.

Four phases run, each with its own editable timeout: discovery, pre-installation, certificate delivery and post-installation. A script that returns non-zero is reported as a failing script, distinctly from an agent fault — so an operator is never told the agent is unreachable when their script simply exited.

A scripted endpoint appears in the same console, with the same expiry countdown and the same renewal history, as a natively integrated one. Support for a new platform does not require waiting for a release.

Why not run ACME on the NetScaler?

Answering ACME challenges from the appliance itself looks simpler than it is.

HTTP-01 means maintaining a responder policy for the challenge path on every virtual server that terminates a domain you need to validate — configuration that has to be correct on the day of renewal, on every virtual server, indefinitely.

DNS-01 means placing DNS provider credentials on the device that terminates TLS for your applications. A NetScaler fronting Citrix Gateway is already one of the highest-value targets in the estate. Adding the ability to create arbitrary DNS records to its credential set is a privilege escalation waiting for the right attacker.

Both options also assume the appliance can reach a public CA, which rules out every internal virtual server and every segmented network — precisely where most of the certificates are.

Scripting it yourself has its own sharp edges: API automation against the management interface, credential handling, chain assembly, keeping the renewal working after the next firmware upgrade, and the ownership question that surfaces the day the engineer who wrote it changes role.

PKI Insights keeps the key generation, the CA communication and the installation inside one audited, monitored path, with no ACME client, no DNS credentials and no scheduled task on the appliance.

Citrix NetScaler is one part of the estate

The same agent, the same inventory and the same renewal engine cover the rest of what terminates TLS in your environment: F5 BIG-IP, FortiWeb and HAProxy at the edge; IIS, NGINX, Apache Tomcat and Oracle WebLogic behind it; Microsoft SQL Server, PostgreSQL and MySQL in the data tier; ADFS, Exchange and RDP across Microsoft infrastructure; Citrix StoreFront and RabbitMQ alongside.

See all supported platforms

Certificate lifecycle management is only half the problem

Automating renewal on a PKI you have not assessed propagates misconfiguration faster than it fixes it. Weak templates, excessive enrolment permissions, improper key usage and the ADCS ESC escalation paths are not corrected by automation — they are renewed on schedule, four times a year, with less human review at each step.

Automation keeps certificates alive. Posture keeps trust intact.

PKI Insights combines certificate lifecycle management with continuous PKI posture assessment across ADCS, EJBCA, Microsoft Cloud PKI and HashiCorp Vault, HSM monitoring, and post-quantum readiness across certificates, endpoints and issuing infrastructure.
